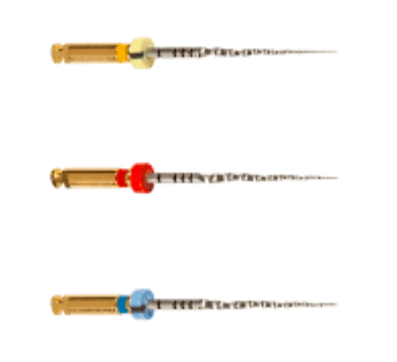

Protaper Endo Rotary Files Hand Next System For Root Canal Size X!-X5 3 Pcs 25mm

Place of Origin P. R. China
Brand Name S&D
Certification TUV CE, ISO13485, ISO9001
Model Number X1, X2, X3, X4, X5,X1-X3
Minimum Order Quantity 100 Packs
Price Negotiable
Packaging Details 10packs/box, 180boxes/carton
Delivery Time 3~25 days
Payment Terms T/T, Western Union, MoneyGram, L/C, D/P, D/A
Supply Ability 1000 packs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Nickel Titanium Size X1-X5
Length 21mm, 25mm, 31mm Surface Color Silver, Gold
Instrument Classification Class 2 Package 6pcs/pack
High Light

protaper rotary file system


protaper hand files 25mm


protaper endodontic files

You can tick the products you need and communicate with us in the message board.
X1 X2 X3 X4 X5
#17/04 #25/06 #30/07 #40/06 #50/06
2-3N/cm 2-3N/cm 2-3N/cm 2-3N/cm 2-3N/cm
250-350rpm 250-350rpm 250-350rpm 250-350rpm 250-350rpm
Leave a Message
X1 X2 X3 X4 X5
Product Description

Dental Compatible Protaper Next System for Root Canal Size X!-X5 For Rotary Use 3 pcs system


S&D taper next

This is the dental file For the removal of dentin and shaping of the root canal.It is non-sterile instrument .

2.Main materials

1) Cutting Nickel Titanium(including nickel and chromium)

2) Shank: copper


Purpose of use and effect -efficacy

This instrument is for enlarging and cleaning root canal by side cut. It is used by connecting to a rotational active device.



Under the provisions of ISO 13485 performance test, product durability for twisting and bending must exceed specified value of our standard.

X1 #17/04
X2 #25/06
X3 #30/07
X4 #40/06
X5 #50/06

X1: ISO 017 004

X2: ISO 025 006

X3: ISO 030 007

X4: ISO 040 006

X5: ISO 050 006


Method of manipulating or method of use

The crown down technique is the technique of choice for rotary instruments. Rotary:300rpmTorque:2-3


Precautions for use

1.To prevent infection, sterilize the product by autoclave and make sure sterilization is completed before using .

2. Choose the most appropriative type for each case and follow the general method.

3.Before using, make sure the instruments outside of oral cavity that there are no deformations, scratches and cracks .

4. If the head of product is thin, long or large, there are possibilities for breaking or twisting. Because of this, be sure to avoid using unreasonable angle and excessive pressure.

5.Wear safety glasses to protect your eyes from damage. Also, wear a dust protective mask to prevent inhaling dust .

6.A chain, string, or other instrument shall be attached to the hole through the shank to prevent it from falling into the mouth.

7. A rubber dam or gauze screen should be used to prevent accidental ingestion and aspiration. Patients with a high likelihood of accidental ingestion or aspiration should not be treated in a horizontal position and should be treated in a seated position whenever possible.

8. Do not use this instrument for any purposes except for listed applications above.

9.Only for use by dentists.

10.This product should be treated as medical waste when disposed.

11.Dispose the product if damaged or contaminated .

12.After using, wash it with medical cleaning agent and brush, then wash away foreign substances like adherent body fluids and body tissues.

13.Avoid using unreasonable angle and excessive pressure.

14. This product has possibility that be corrosive if sunk into NaOCl, EDTA and etc . for a long time.


Storages and duration of use

1. Avoid storing at high temperature, humidity and direct sunlight.

Keep liquids away. Store it at room temperature.

2. Do not damage or make a pinhole to packaging materials.

3. The product is subject to be improved without previous notice. Enforce

the first-in first-out method for stock management.

4. Do not store the product under a germicidal lamp to avoid deterioration.


Maintenances and inspections

Sterilize this product by autoclave under established method and term for each use.

Method of sterilization:

Put this product in a sterilization pack (or foil) and place it on a sterilization tray, or files stand for autoclave sterilization with reference to the following terms.

Terms for sterilization:

term(1) temperature: 134degrees Celsius time: 15 minutes or more

2.Do not use high pressure steam sterilizer which heats more than 200 degrees Celsius including drying process .

<Instruction of using >

1) Create straight-line access to the canal orifice

2) Scout the whole root canal with small-sized hand files, determine working length

3)Use X1 in one or more passes, alternatively with small-sized hand files if necessary, until full working length is passively reached.

4) Use X2 , exactly as described for X1, until full working length is passively reached.

● If the instrument is snug at length, preparation is finished and the canal is ready to be obturated.

● If the instrument is loose at length, continue shaping with X3

, when necessary, proceed with X4 or X5

Irrigate abundantly and frequently after each instrument used
